PL-Series High Precision Planetary Gearboxes

The PL series is an economy rotary flange pulley drive output precision planetary gearbox. Standard profile pulleys are available for all sizes. Accuracy is down to less than 6 arc minutes. The PL series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.

Enquire Now

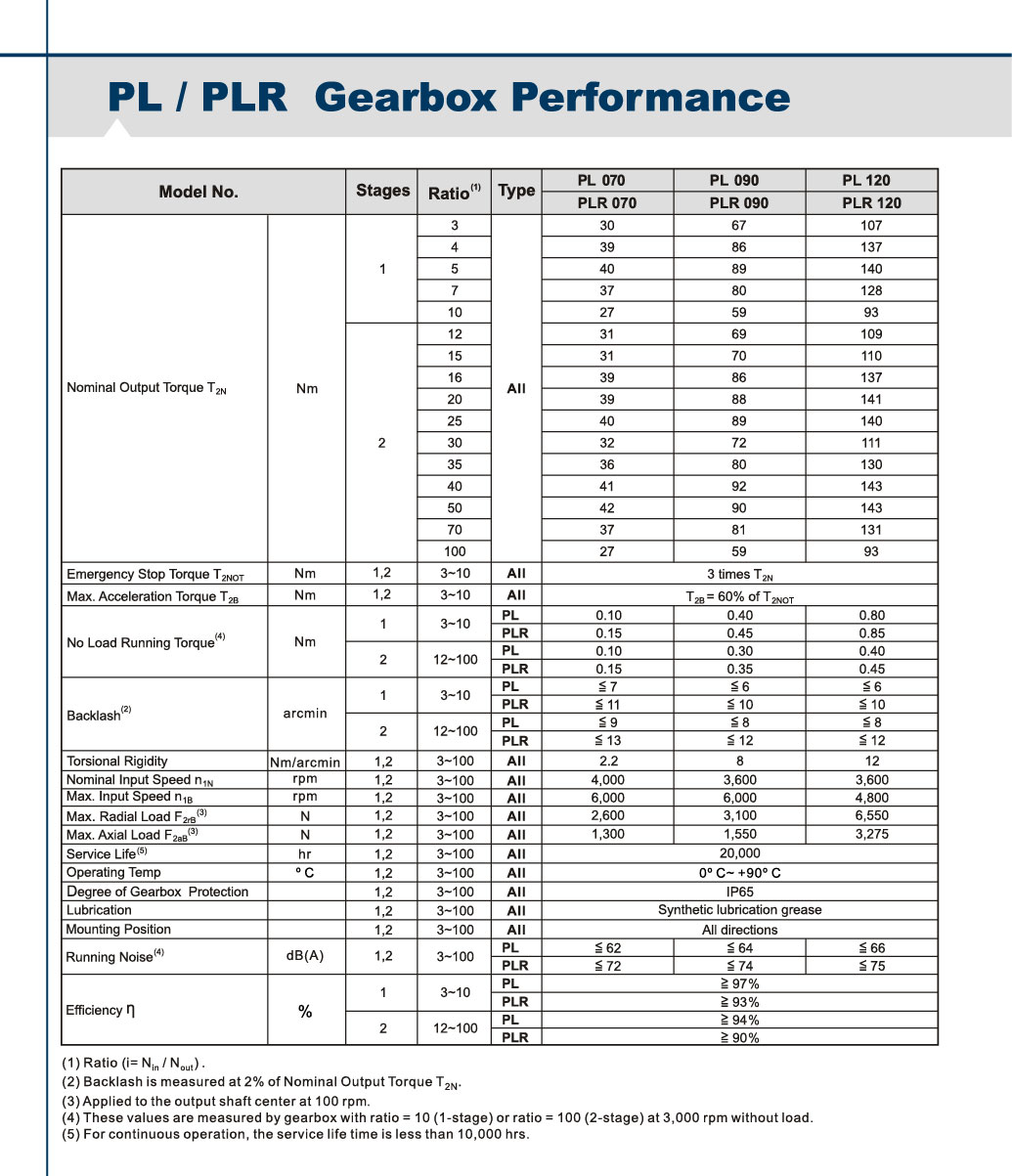

  • Output torque
    T2N : 27 Nm - 143 Nm
  • Ratios
    1-stage :  3/4/5/7/10
    2-stage :  12/15/16/20/25/30/35/40/50/70/100
  • Low backlash
    1-stage : ≤7-6 arcmin
    2-stage : ≤9-8 arcmin
  • High Efficiency
    1-stage : ≧ 97%
    2-stage : ≧ 94%
  • Easy Mount
  • Low Noise
  • Compact Structure
