PEIIR-Series High Precision Right Angle Planetary Gearboxes
PEIIR-Series High Precision Right Angle Planetary Gearboxes
The Apex PEIIR series is a high precision economy right angle planetary gearhead. The PIIR series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PEIIR features an industry standard metric tapped face output, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies. Low profile planetary gearing and precision ground spiral bevel right angle gears provide smooth, quiet operation and accuracy.
Enquire Now

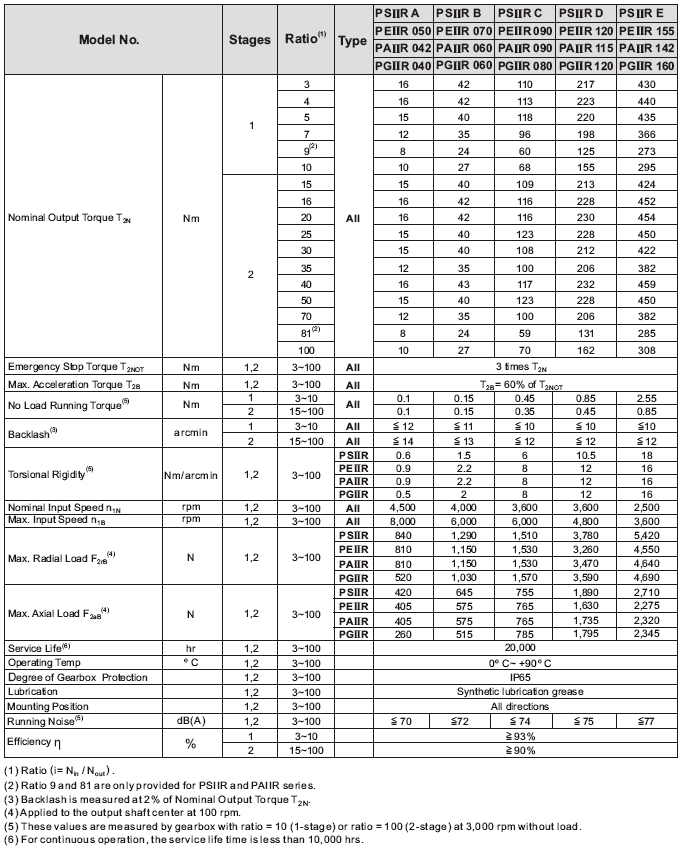

Overview
- Output torque
T2N : 16 Nm - 308 Nm - Ratios
1-stage : 3/4/5/7/9/10
2-stage : 15/16/20/25/30/35/40/50/70/81/100 - Low backlash
1-stage : ≤12-10 arcmin
2-stage : ≤14-12 arcmin - high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94% - Easy mount
- Low Noise
- Compact structure
- Smooth Operation
- Low Friction
