AFR-Series High Precision Planetary Gearboxes
AFR-Series High Precision Planetary Gearboxes
The Apex AFR series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.
Enquire Now

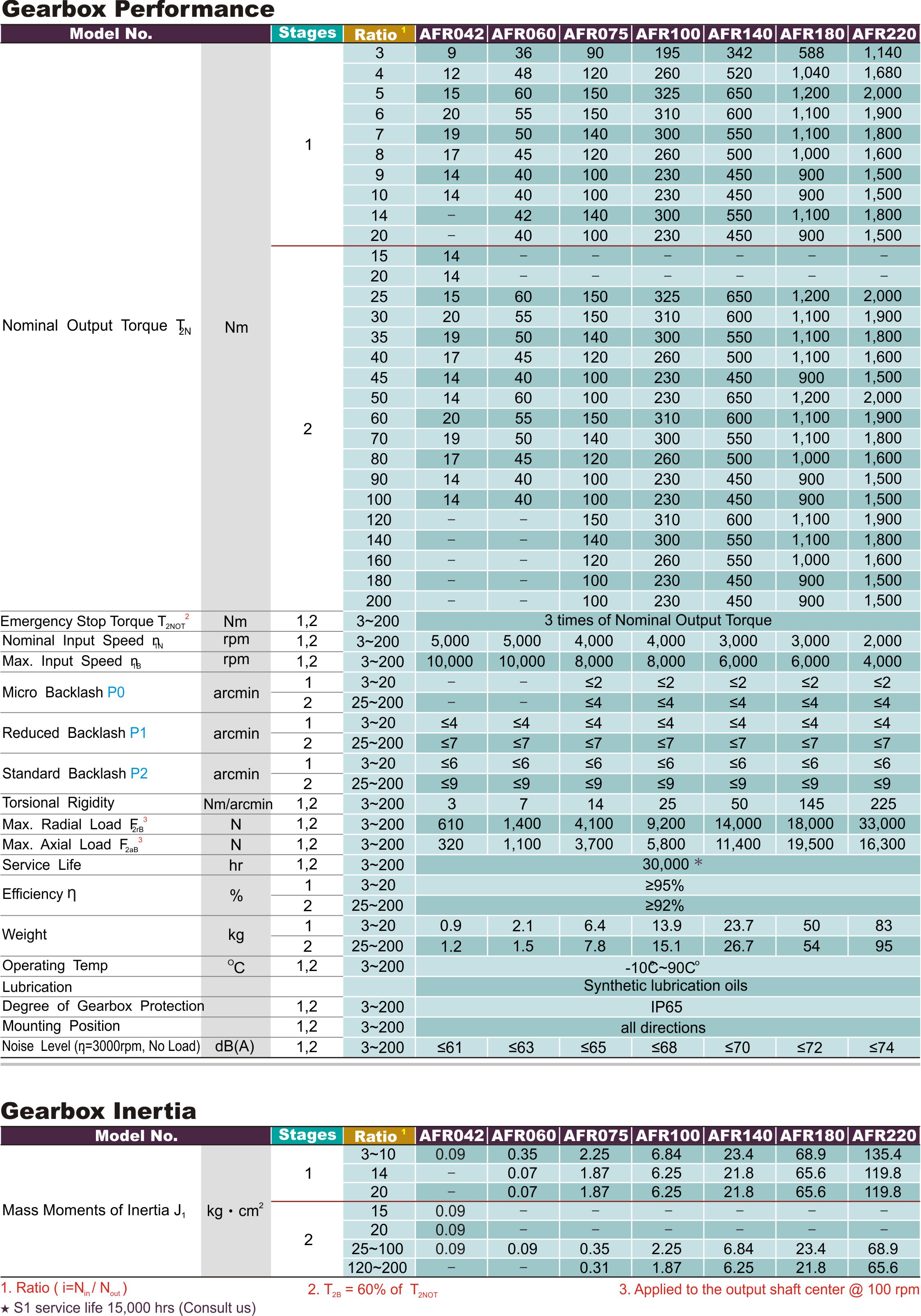

Overview
- Output torque
T2N : 9 Nm - 2000 Nm - Ratios
1-stage :3/4/5/6/7/8/9/10/14/20
2-stage :
15/20/25/30/35/40/45/50/60/70
80/90/100/120/140/160/180/200
*Only AFR042 2-stage offers 15,20 option.
- Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
- high efficiency
1-stage :≧ 95%
2-stage :≧ 92%
- Easy mount
- Low Noise
