ADR-Series High Precision Planetary Gearboxes
ADR-Series High Precision Planetary Gearboxes
The Apex ADR series has a 90° input via spiral bevel gear. It features an extremely short, rigid housing and full compatibility to any motor. A High Torque, Low backlash COMPACT Helical, One Piece Planetary Cage Design Provides the Stiffest and Most Accurate Rotating Flange Design on the Market Today. Superior Accuracy, Torsion Rididity, Moment Load Capacity.
Enquire Now

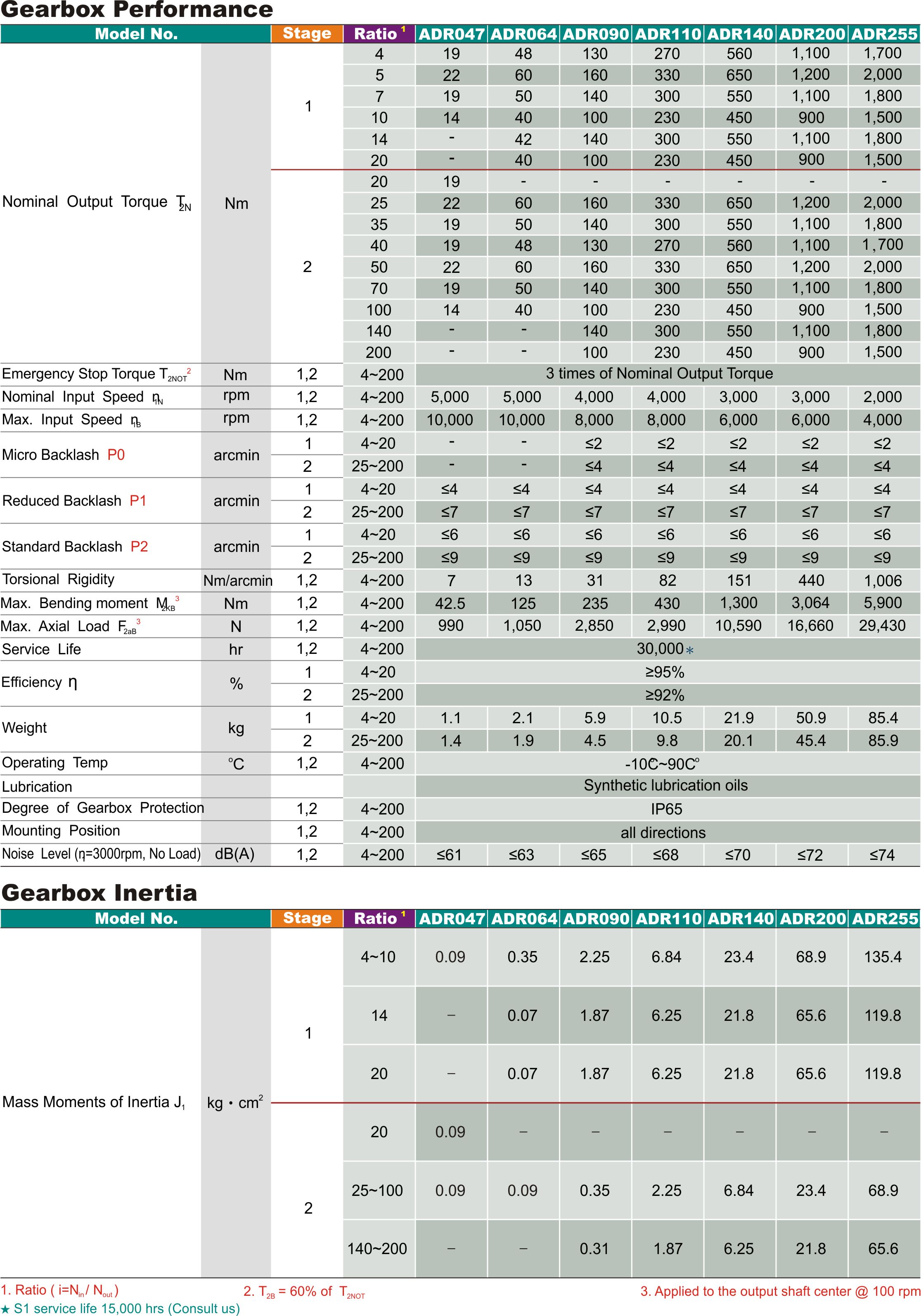

Overview
- Output torque
T2N : 14 Nm - 2000 Nm
- Ratios
1-stage : 4 / 5 / 7 / 10 / 14 / 20
2-stage : 20/25/35/40/50/70/100/140/200*Only ADR047 2-stage offers 20 option.
- Low backlash
1-stage : ≤2 arcmin / ≤4 arcmin / ≤6 arcmin
2-stage : ≤4 arcmin / ≤7 arcmin / ≤9 arcmin
- high efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
- Easy mount
- Low Noise
- Compact structure
