ABR-Series High Precision Planetary Gearboxes
ABR-Series High Precision Planetary Gearboxes
The Apex ABR series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allow for High Radial and Axial Loads.
Enquire Now

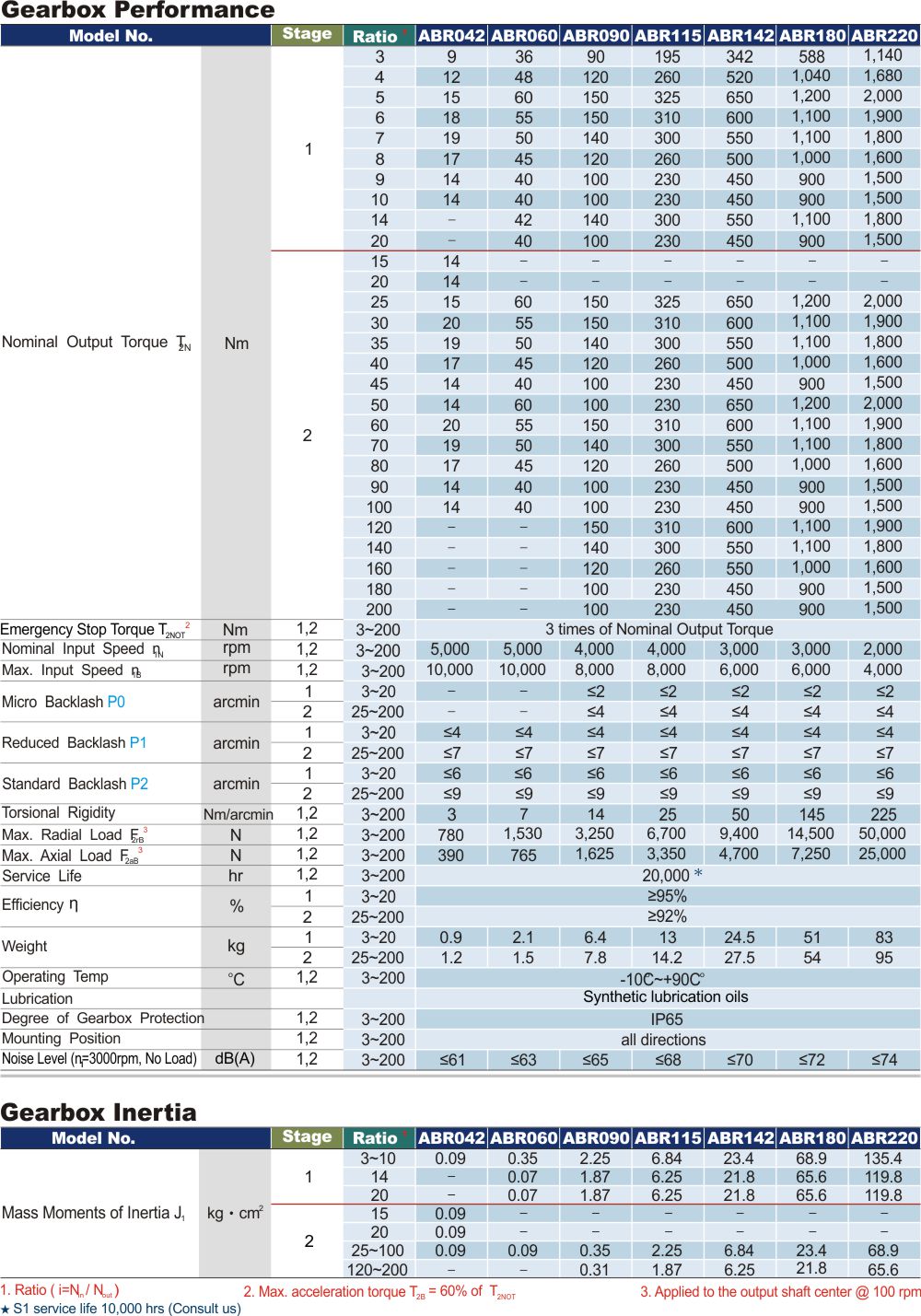

Overview
- Output torque
T2N : 9 Nm - 2000 Nm - Ratios
1-stage :3/4/5/6/7/8/9/10/14/20
2-stage :
15/20/25/30/35/40/45/50/60/70
80/90/100/120/140/160/180/200
*Only ABR042 2-stage offers 15,20 option.
- Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
- high efficiency
1-stage :≧ 95%
2-stage :≧ 92%
- Easy mount
- Low Noise
