AE-Series High Precision Planetary Gearboxes
AE-Series High Precision Planetary Gearboxes
The Apex AE series is unique to the market. Apex is the only Manufacturer that Produces a Cylindrical Helical Stainless Steel Gearbox World Wide. High Precision, High Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allow for High Radial and Axial Loads.
Enquire Now

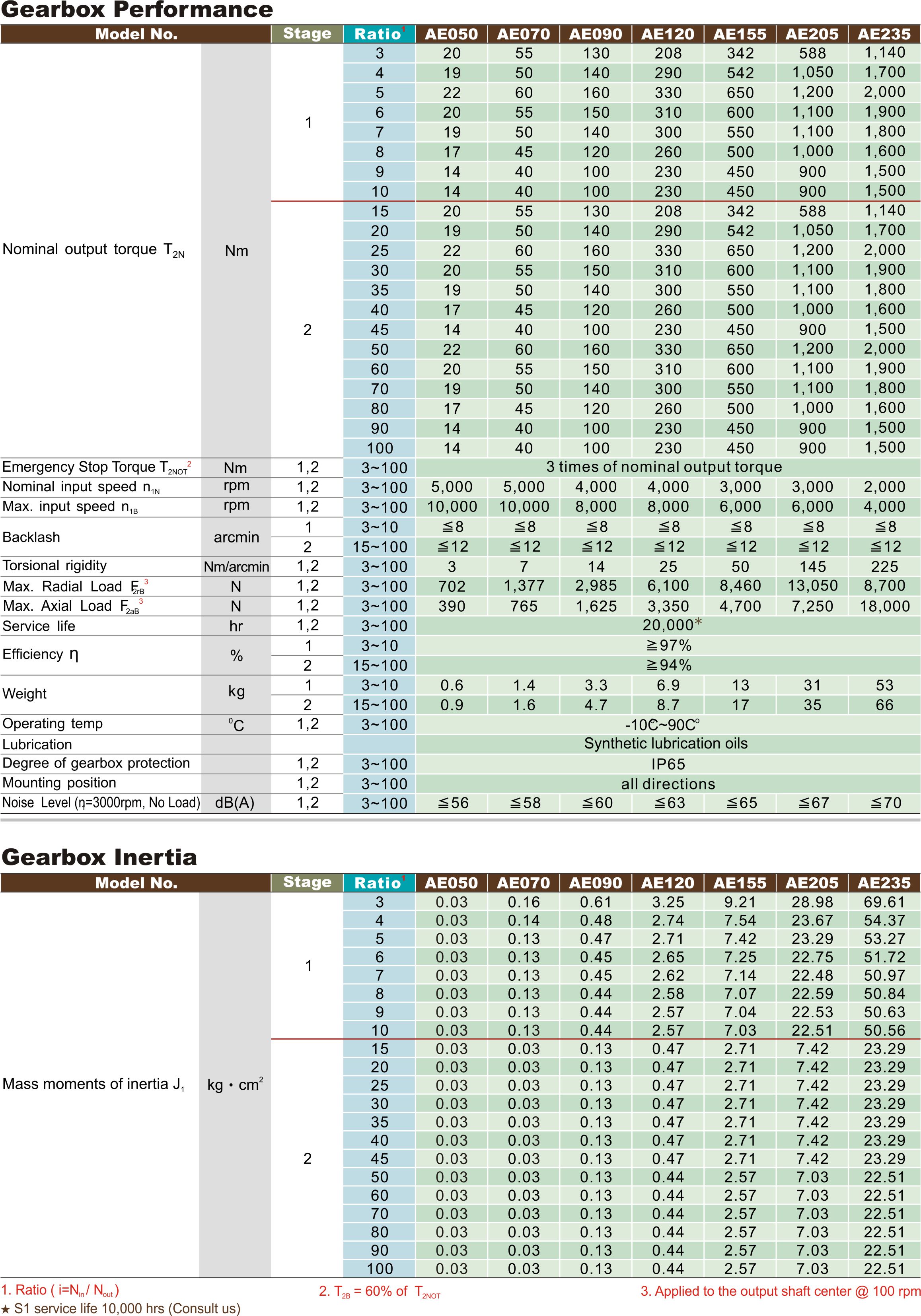

- Output torque
T2N : 14 Nm - 2000 Nm
- Ratios
1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage : 15/20/25/30/35/40/45/
50/60/70/80/90/100
- Low backlash
1-stage : ≤8 arcmin
2-stage : ≤12 arcmin
- high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
- Easy mount
- Low Noise
- Compact structure
