ADS-Series High Precision Planetary Gearboxes

The Apex ADS series features a specially designed input shaft with key and treaded hole. Easy to drive via timing belt pulley or coupling. It has been specifically created to increase design flexibility and space saving for motor mounting. It is ideal for highly dynamic cyclic duty or continuous running application.

Enquire Now

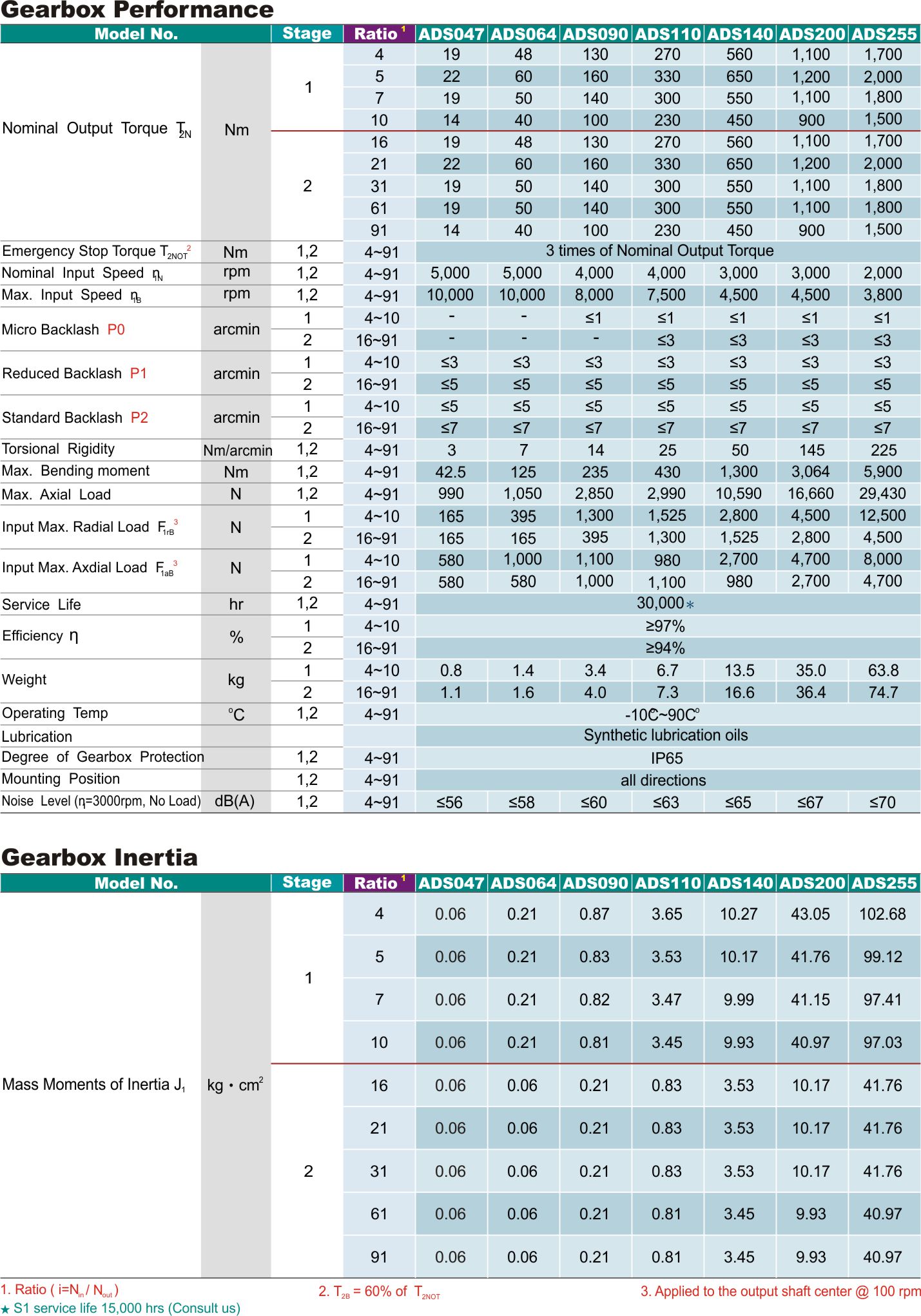

  • Output torque
    T2N : 14 Nm - 2000 Nm
  • Ratios
    1-stage : 4 / 5 / 7 / 10
    2-stage : 16/21/31/61/91
  • Low backlash
    1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
    2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
  • high efficiency
    1-stage : ≧ 97%
    2-stage : ≧ 94%
  • Easy mount
  • Low Noise
  • Compact structure
